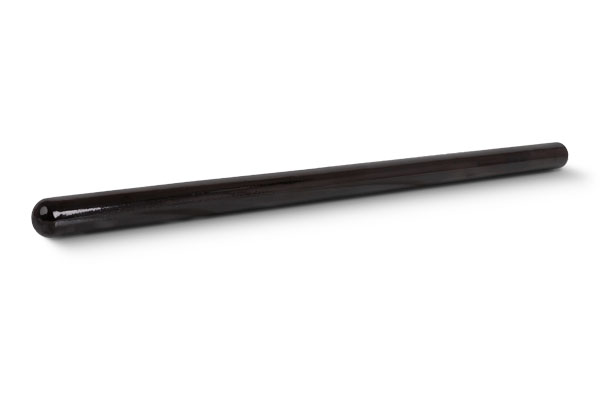

Cast Iron Thermocouple Protection Tubes
with and without ceramic coating
Various standard types:
| Type | Weight | Length mm / inch |
| CIPT-12-C | 3 kg | 305 mm / 12″ |
| CIPT-18-C | 4 kg | 460 mm / 18″ |
| CIPT -24-C | 5 kg | 610 mm / 24″ |
| CIPT -30-C | 7 kg | 760 mm / 30″ |
| CIPT -36-C | 8 kg | 915 mm / 36″ |
| CIPT -42-C | 9 kg | 1065 mm / 42″ |
| CIPT -48-C | 10 kg | 1220 mm / 48″ |
| CIPT -54-C | 12 kg | 1370 mm / 54″ |
| CIPT -60-C | 13 kg | 1525 mm / 60″ |
| CIPT -66-C | 14 kg | 1675 mm / 66″ |
| CIPT -72-C | 15 kg | 1830 mm / 72″ |
| CIPT -96-C | 25 kg | 2440 mm / 96″ |
Application:
aluminium and zinc melting furnaces and all other applications where mechanical strength is needed; preheating not required!
Max. Temperatuur: with ceramic coating ('C') up to 800°C, without coating ('U') up to 875°C. All protection tubes: one piece special alloyed casting.
Connection: ¾” NPT inside thread standard; threads other than ¾” NPT available upon request.
Types:
CIPT-(length in “)-C (with ceramic coating)
CIPT-(length in “)-U (without ceramic coating)
